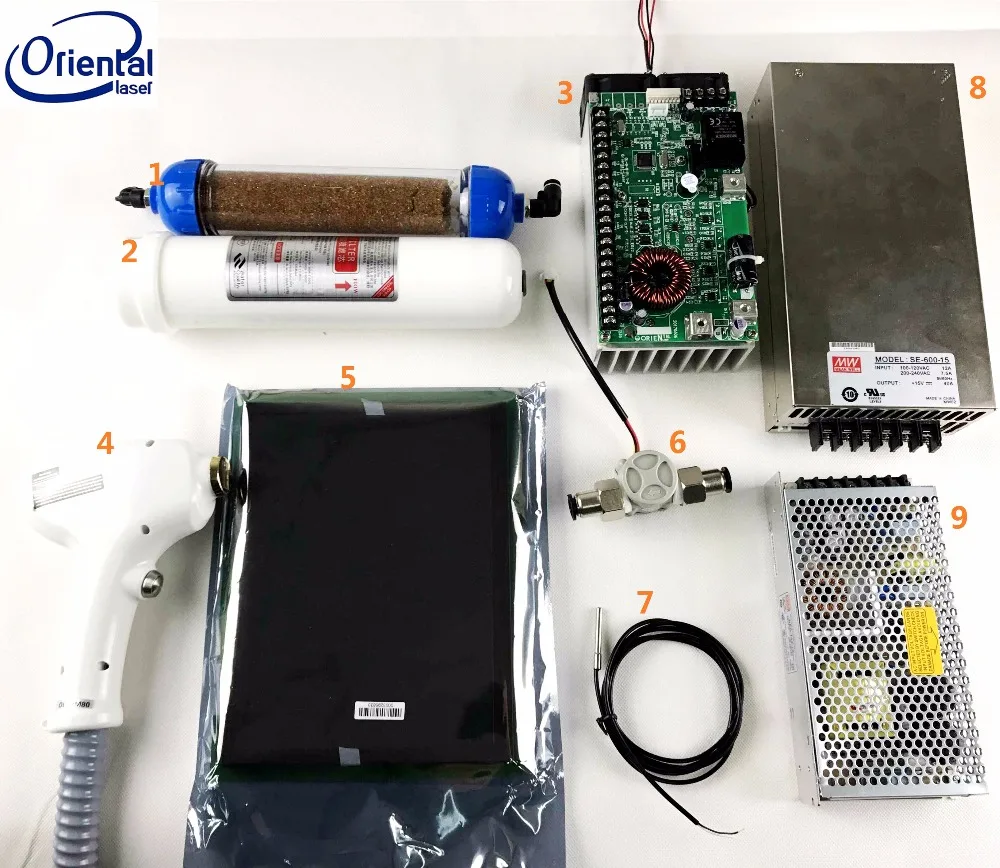

This is 600W micro channel 808nm diode laser hair removal machine without cover shell. So you can OEM your own shell to make your own machine easily. Oriental-laser focused on diode laser assembly for more than 10 years. So we can OEM any spare parts of laser hair removal machine from screws to total machine. This Frame will include the following structures from bottom to up side:
I: Water Way System Bottom
1. Freon Compressor Japan imported and provide a best cooling environment 2. Radiators with best cooling effect also 3. Water pumps and tank to control the perfect water recycle inner side 4. Water sensor,filters and temperature sensors to keep the water recycle accurately
II: Electricity Connections
5.All Taiwan Meanwell Branded Power Supply specially for beauty machine 6.Self-design Controller board with controller and driver united in one, which can controll the soft-ware and hard-ware accurately 7.DWIN 10.4 inch color touch screen it is bigger than common 8.0 inch and best quality for the screen touch and clearity
III: 600W micro channel diode laser handle
Oriental-laser has a nice 100K clean-lab specially for diode laser bar assembly. So we can make diode laser stack with Germany imported bars by ourself. That is why we can offer diode laser handle cheaper than others but with more reasonable price and better quality. At the same time, we can repair other brand diode laser handles from Alma Lasers and Syneron or other china brand and Korea are also ok.
Product name :Germany bar 808nm permanent and painless diode 810 laser hair removal Output power :600w Wavelength :808nm+755nm;1064nm+808nm Laser Stack: Micro channel cooled vertical stack diode laser Energy Density: 0~120J/cm2 Pulse Width: 0~600ms Repetition Rate :1~12Hz Skin Cooling Temperature: -5℃--5℃ by cooled Sapphire Spot Size 15mmx25mm Interface Language: English or other 28 kinds language optional LCD Screen :10.4" System Cooling Method :Air+water+peltier+TEC+Freon compressor Input VAC :220VAC / 50-60Hz or 110VAC / 50-60Hz Aluminum Case Dimension :59*54*125cm Volume Weight :80KG
3. OEM Machine Shell
4. OEM Pack of diode laser hair removal
Oriental-laser (Beijing)Co.,LTD has a facility of 10000 square feet of class 10K clean room & class 1000 local clean zone. We focus on diode laser mounting for 10 years. Our aim is to offer diode laser to customer with competitive price, good performance and high reliability. Oriental-laser is a group company for micro 808nm diode laser hair removal System, we work together for happiness.
A: Germany imported bar and micro channel heat-sink B: Professional in diode laser bar assembly and mounting C: Best working place 100K clean lab for extend diode bar life D: Real manufacturer from screws to total machine E: OEM service from diode bar power, spot size and also the cover shell
